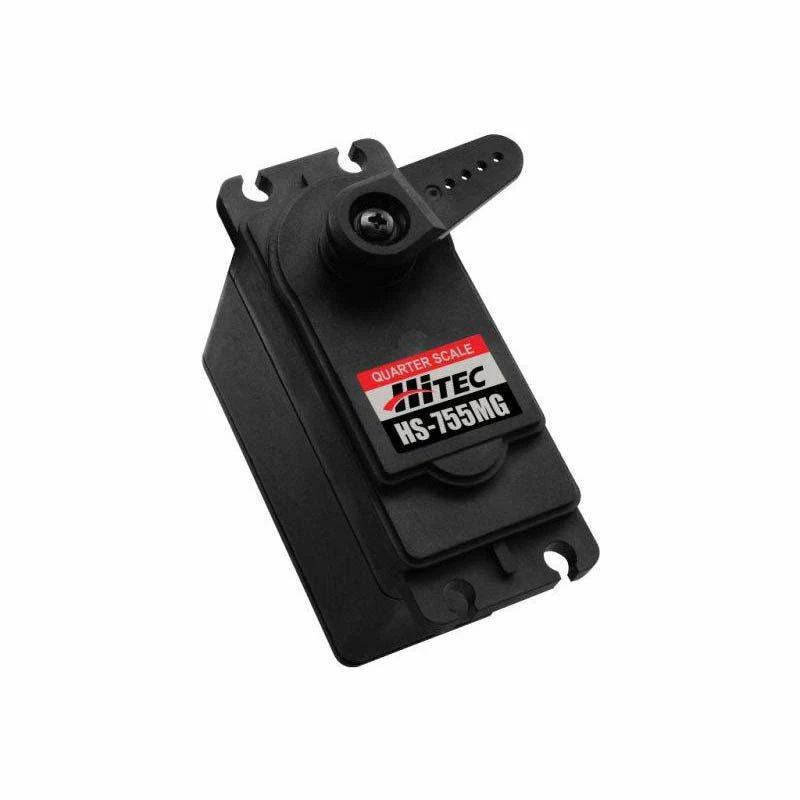

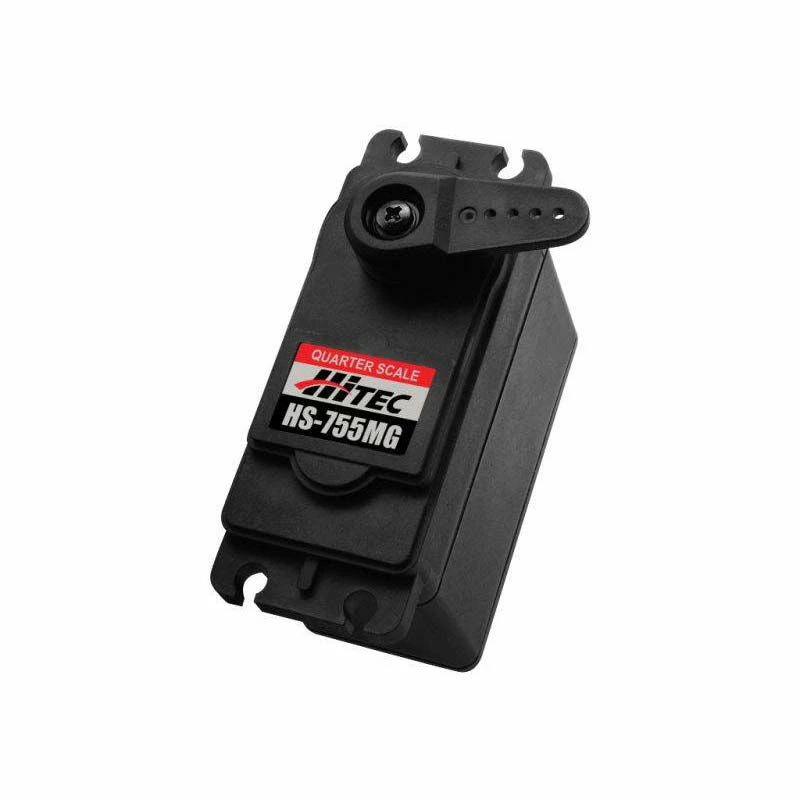

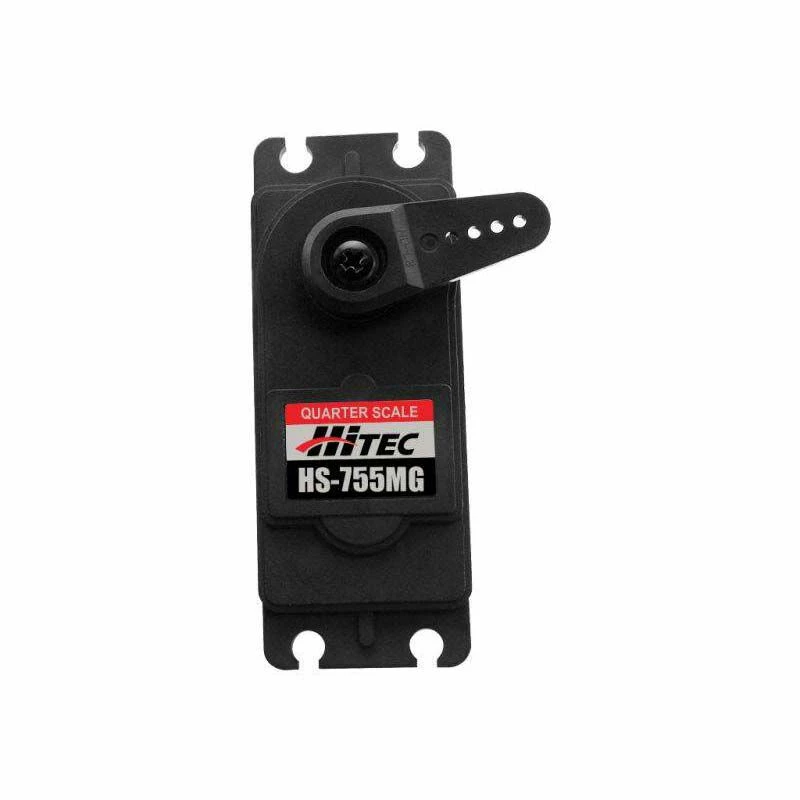

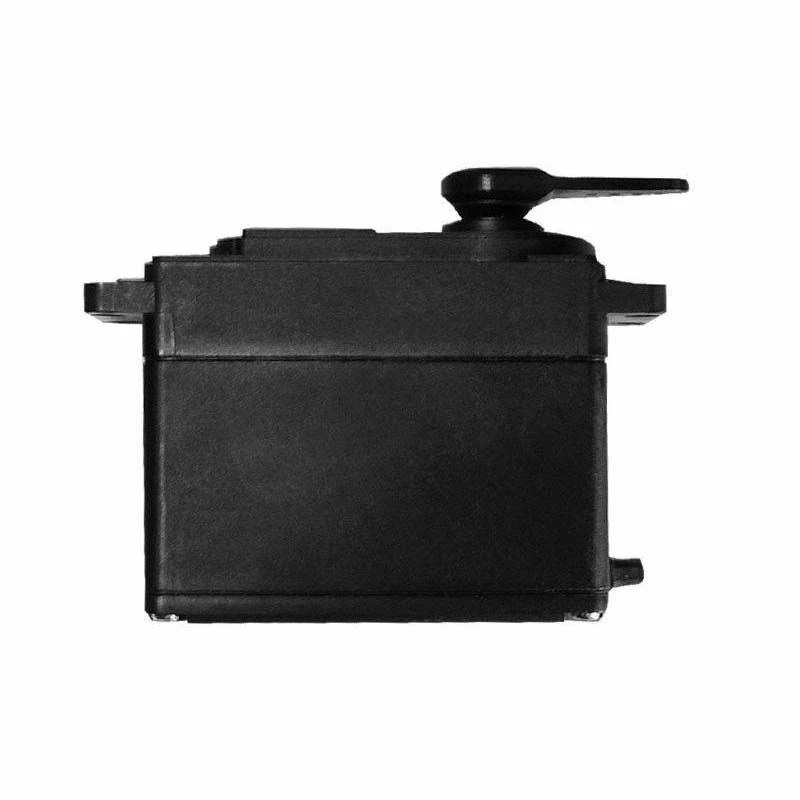

Hitec RCD Inc. HS-755MG Giant Scale Analog Metal Gear Servo

Hitec RCD Inc. HS-755MG Giant Scale Analog Metal Gear Servo - Image 2

Hitec RCD Inc. HS-755MG Giant Scale Analog Metal Gear Servo - Image 3

Hitec RCD Inc. HS-755MG Giant Scale Analog Metal Gear Servo - Image 4

Hitec RCD Inc. HS-755MG Giant Scale Analog Metal Gear Servo

Original price was: $51.99.Current price is: $31.19.

SKU: HRC32755S Category: Servos Tag: Hitec RCD Inc.

Quality products, fair prices.
Buy quality, buy with us.
Best price, safe shopping guarantee
100% Quality Satisfaction

Description
Reviews (0)

Product Details

Key Features

Metal geared
Dual ball bearing output spline
Water and dust tight
Designed for use in large models

icon-box

In The Box

One HS-755MG giant dual BB servo with Hitec/JR/Z tupe connector
One servo accessory package containing: One 1″ (26mm) single arm servo horn(pre-installed on servo) One 1.3″ (33mm) single arm servo horn One 2.3″ (58mm) dual arm servo horn One 1.7″ (43mm) diameter servo wheel One 2.8″ (71mm) dual arm servo horn
Four brass eyelets
Four servo mounting screws
Four rubber grommets

Product Specifications

Bearing: Dual
Bushing Or Bearing: Bearing
Current Draw Idle: 8mA
Current Draw Stall: 1500mA @ 4.8V; 1800mA @ 6.0V
Deadband: 5 microsecond
Gear Type: Metal
Maximum Servo Torque: 166.6 oz-in (12.0kg-cm) @ 4.8V; 200.0 oz-in (14.4kg-cm) @ 6V
Maximum Servo Speed: 0.28 sec/60 deg @ 4.8V; 0.23 sec/60 deg @ 6V at no load
Max Servo Torque: 200-349 oz-in
Programmable: No
Servo Operating Voltage: 4.8 – 6.0V
Servo Size Category: Giant Scale
Servo Type: Analog
