Product Details

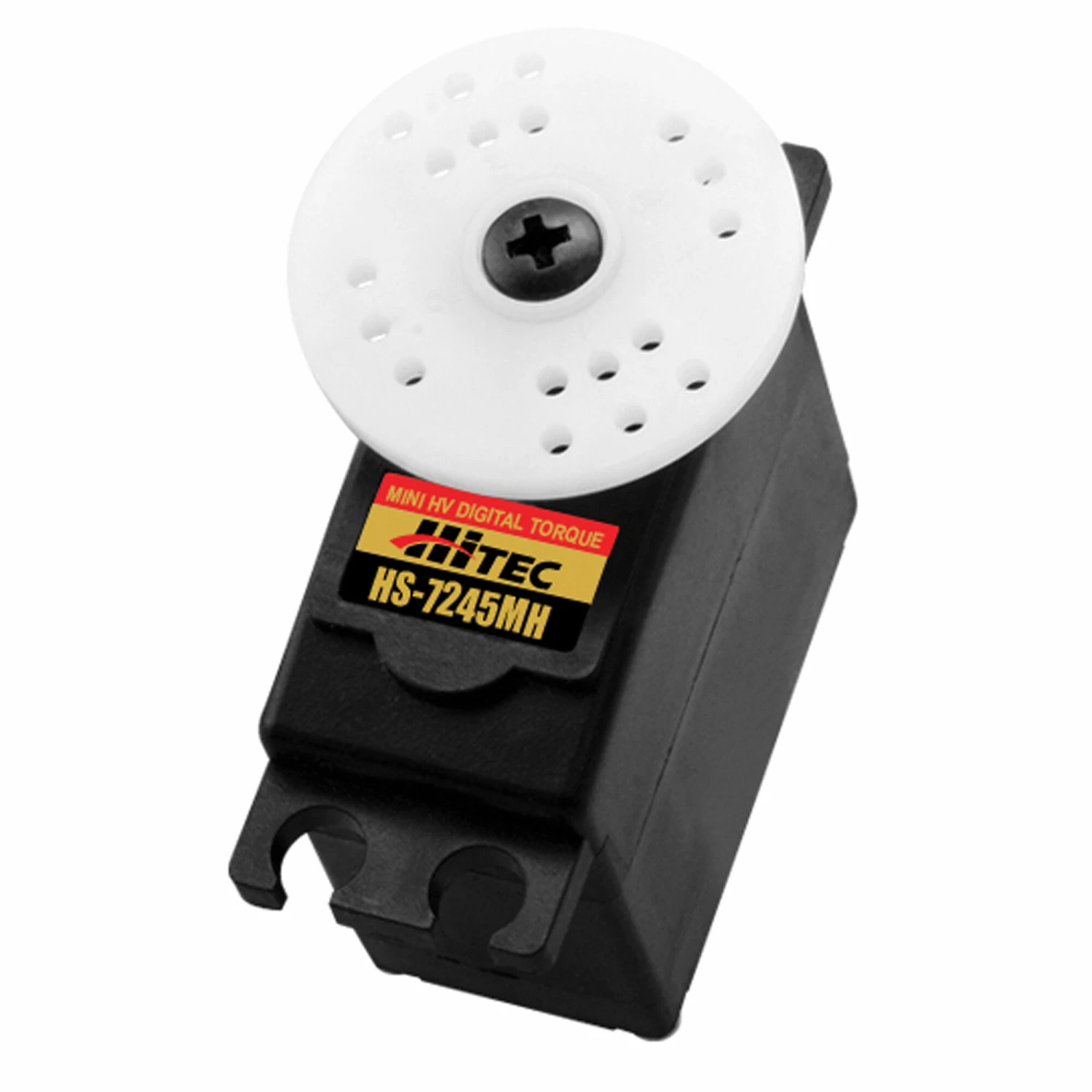

Watch out, here it comes! Our new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package.
Key Features
- Efficient Coreless Motor
- Heavy Duty Metal Gear Train
- Dual Ball Bearing
- 7.4V 2-Cell LiPo Capability
- G2.5 Fully Programmable Digital Circuitry
Product Specifications
- Application: Mid size gas & electric airplanes, 500-550 electric helis, 1:12 scale on-road racers, 1:18 scale rock crawlers
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Current Draw Idle: 12 mA
- Current Draw Stall: 1,600mA
- Deadband: Width, 2 ?s
- Gear Type: Metal
- Maximum Servo Speed: 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V
- Max Servo Torque: 40-99 oz-in
- Product Height: 1.29 in (32.8mm)
- Product Length: 1.28 in (32.4mm)
- Product Weight: 1.20 oz (34g)
- Product Width: 0.66 in (16.8mm)
- Programmable: Yes
- Servo Operating Voltage: 6.0 – 7.4V (HV)
- Servo Size Category: Mini
- Servo Type: Digital
- Spline Count: 24 Teeth
- Wire Gauge: 22 AWG
