Sale!

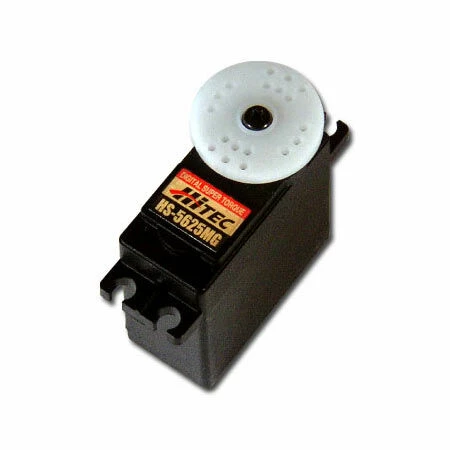

Hitec RCD Inc. HS-5625MG Standard Digital High Speed Metal Gear Servo

Original price was: $45.99.Current price is: $27.59.

SKU: HRC35625S Category: Servos Tag: Hitec RCD Inc.

Quality products, fair prices.
Buy quality, buy with us.
Best price, safe shopping guarantee
100% Quality Satisfaction

Description
Reviews (0)

Product Details

Key Features

EPA, Speed, Direction, and Fail-Safe Programmable
MOSFET amplifier.
Gold plated contacts.
Three metal gears
Dual ball bearings.
Indirect drive long life potentiometer.
High standing torque.
Watertight and dustproof.
Includes aluminum, heat-treated servo arm
Works with fixed winged aircraft and helicopters up to 40 pounds, 1/10th and 1/8th on- or off-road vehicles.

icon-box

In The Box

One digital high torque servo with 12″ wire and S/JR/Air-Z connector
One Small X-shaped servo horn.
One Large X-shaped servo horn.
One adjustable servo horn.
One off-set straight servo horn.
One disc servo horn.
One aluminum, heat-treated servo arm horn.
Four 2 x 14mm mounting screws
Four brass eyelets
Four black rubber vibration isolators.

Product Specifications

Bearing: Dual
Bushing Or Bearing: Bearing
Gear Type: Metal
Maximum Servo Torque: 109.7 oz/in (7.9 kg/cm) @ 4.8V 130.53 oz/in (9.4 kg/cm) @ 6V
Maximum Servo Speed: 0.17 sec/60 deg. @ 4.8V 0.14 sec/60 deg. @ 6V
Max Servo Torque: 100-199 oz-in
Programmable: Yes
Servo Operating Voltage: 4.8 – 6.0V
Servo Size Category: Standard
Servo Type: Digital
