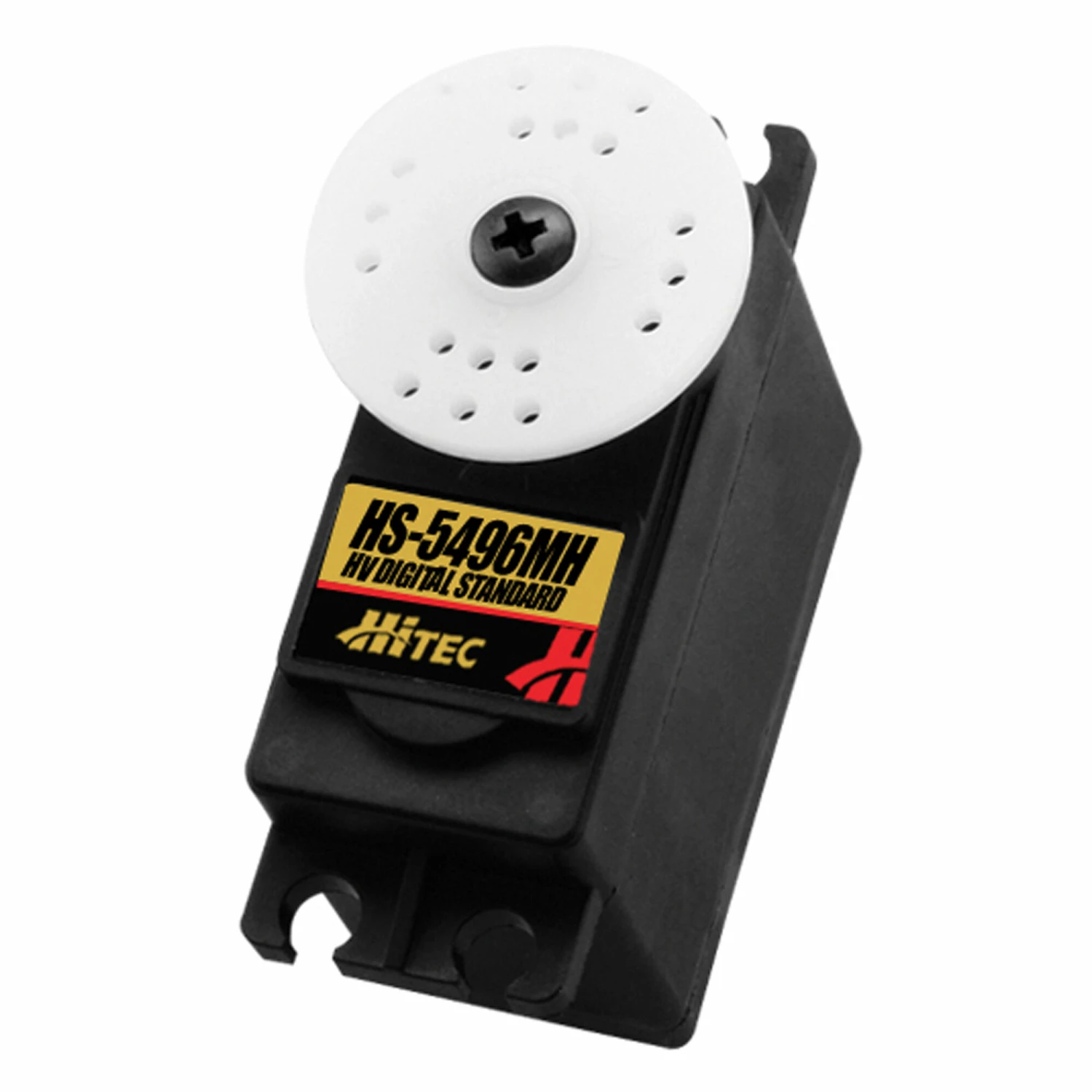

Hitec RCD Inc. HS-5496MH Standard Digital HV Metal Gear Servo

Original price was: $39.99.Current price is: $23.99.

SKU: HRC35496S Category: Servos Tag: Hitec RCD Inc.

Quality products, fair prices.
Buy quality, buy with us.
Best price, safe shopping guarantee
100% Quality Satisfaction

Description
Reviews (0)

Product Details

Key Features

Designed to be powered from a 2-cell 7.4V LiPo battery for extra speed and power
Ideal for 1/10 to 1/8 scale on- and off-road vehicles, larger sport helis and large scale aerobatic aircraft up to 25%
Programmable features include; Dead Band Width, Rotation Direction, Rotation Speed, End Points/Neutral Points, Fail Safe On/Off, Fail Safe Point
Heavy duty metal gear train (MK first gear)

icon-box

In The Box

HS-5696MH High Torque
High Volt Metal Gear Servo with Connector
0.94″ (24mm) round horn
1.8″ (45mm) round horn
1.7″ (44mm) 4-point round horn
0.98″ (25mm) single arm horn
2.3″ (59mm) double arm horn
0.87″ (22mm) mounting hardware
Instruction Sheet

icon-how-to

Needed to Complete

Installing in model and connecting linkage

Product Specifications

Application: 50-64oz sport & scale planes, 2M & up sailplanes, 1M sailboat, 1:10 scale power boat
Bearing: Single
Bushing Or Bearing: Bearing
Current Draw Idle: 12mA
Current Draw Stall: 1,400mA
Gear Type: Metal
Maximum Servo Speed: 0.17 sec/60 deg @ 6.0V; 0.15 sec/60 deg @ 7.4V
Max Servo Torque: 100-199 oz-in
Product Height: 1.49 in (38.0mm)
Product Length: 1.57 in (39.8mm)
Product Weight: 1.84 oz (52.0g)
Product Width: 0.78 in (19.8oz)
Programmable: Yes
Servo Operating Voltage: 6.0 – 7.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 24 Teeth
