Product Details

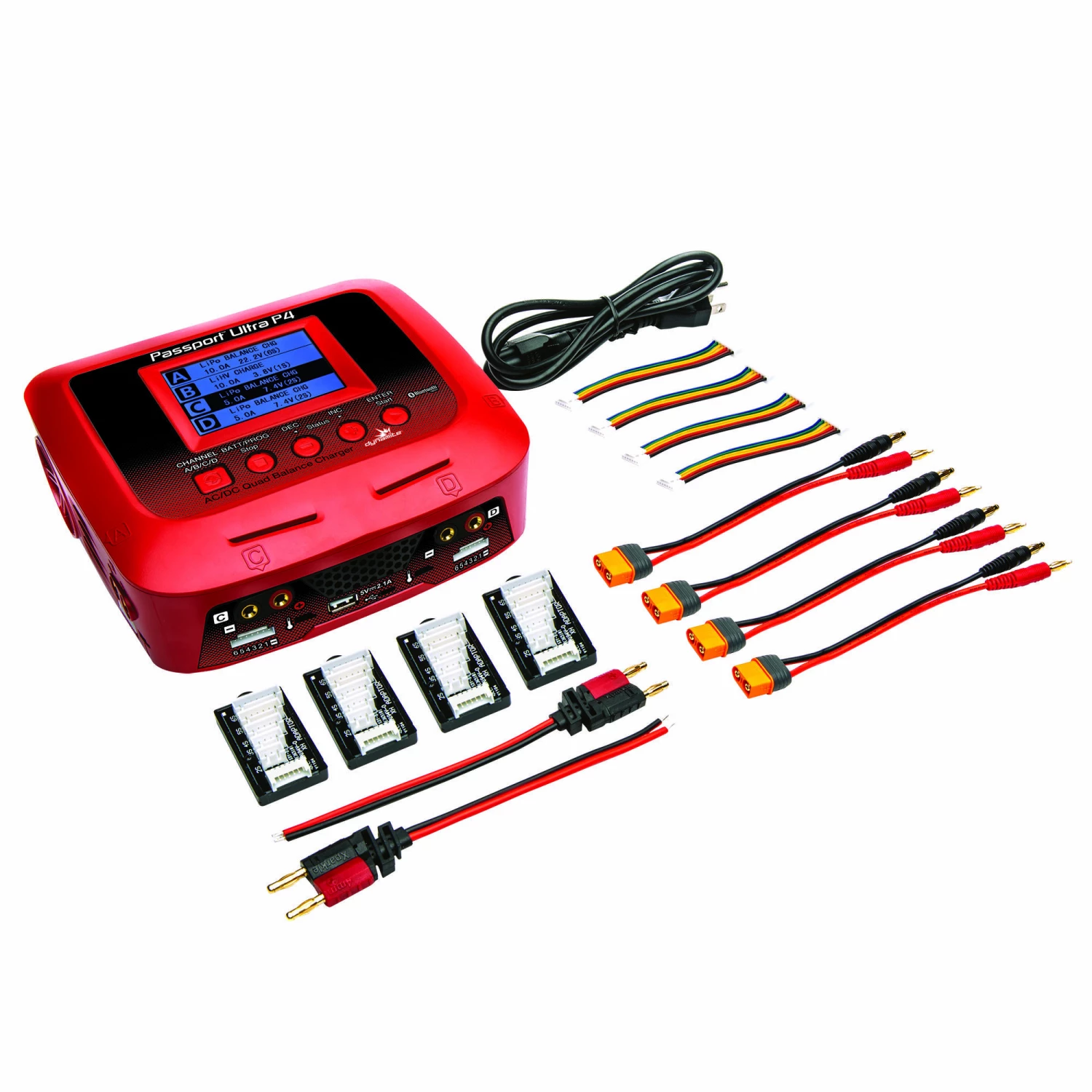

In The Box

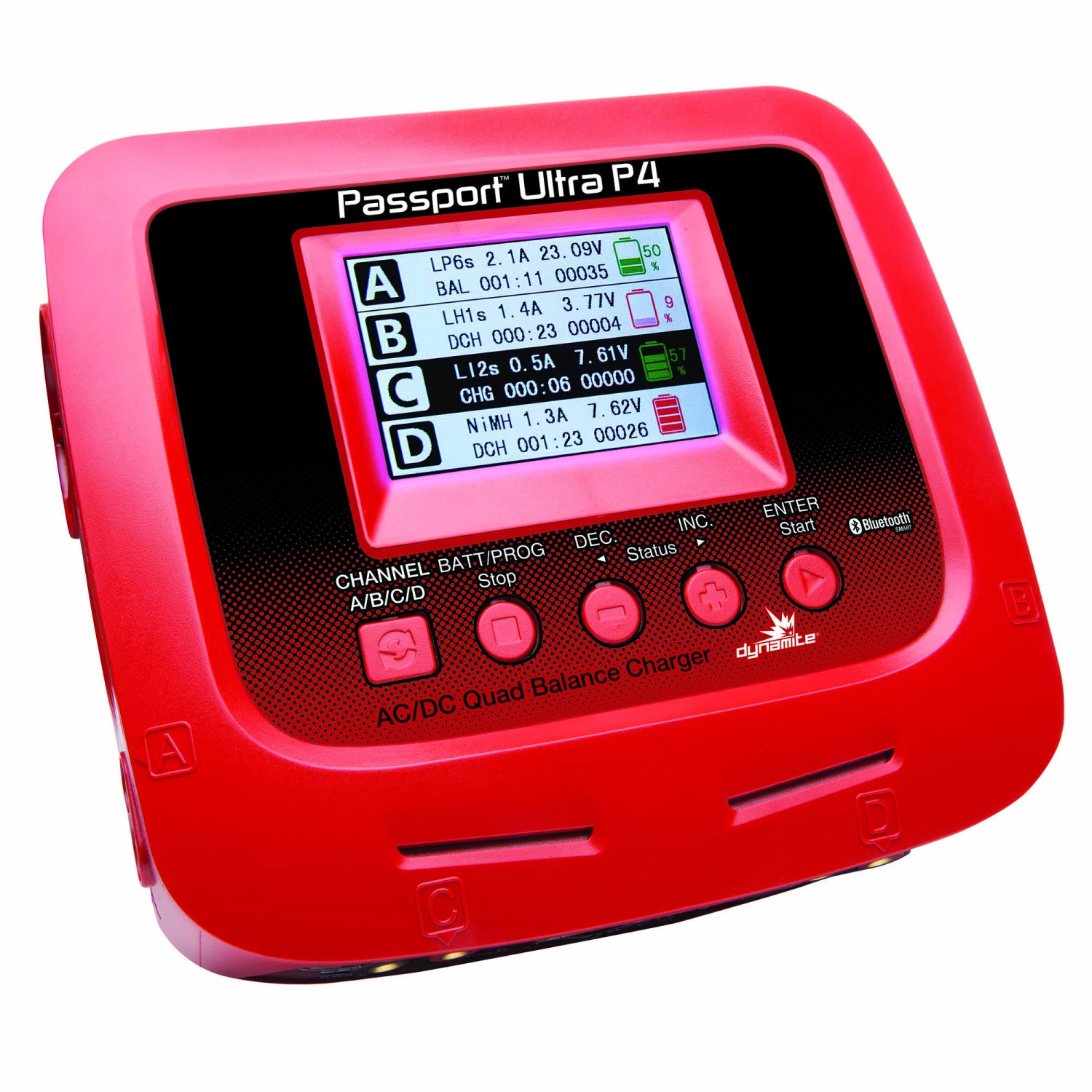

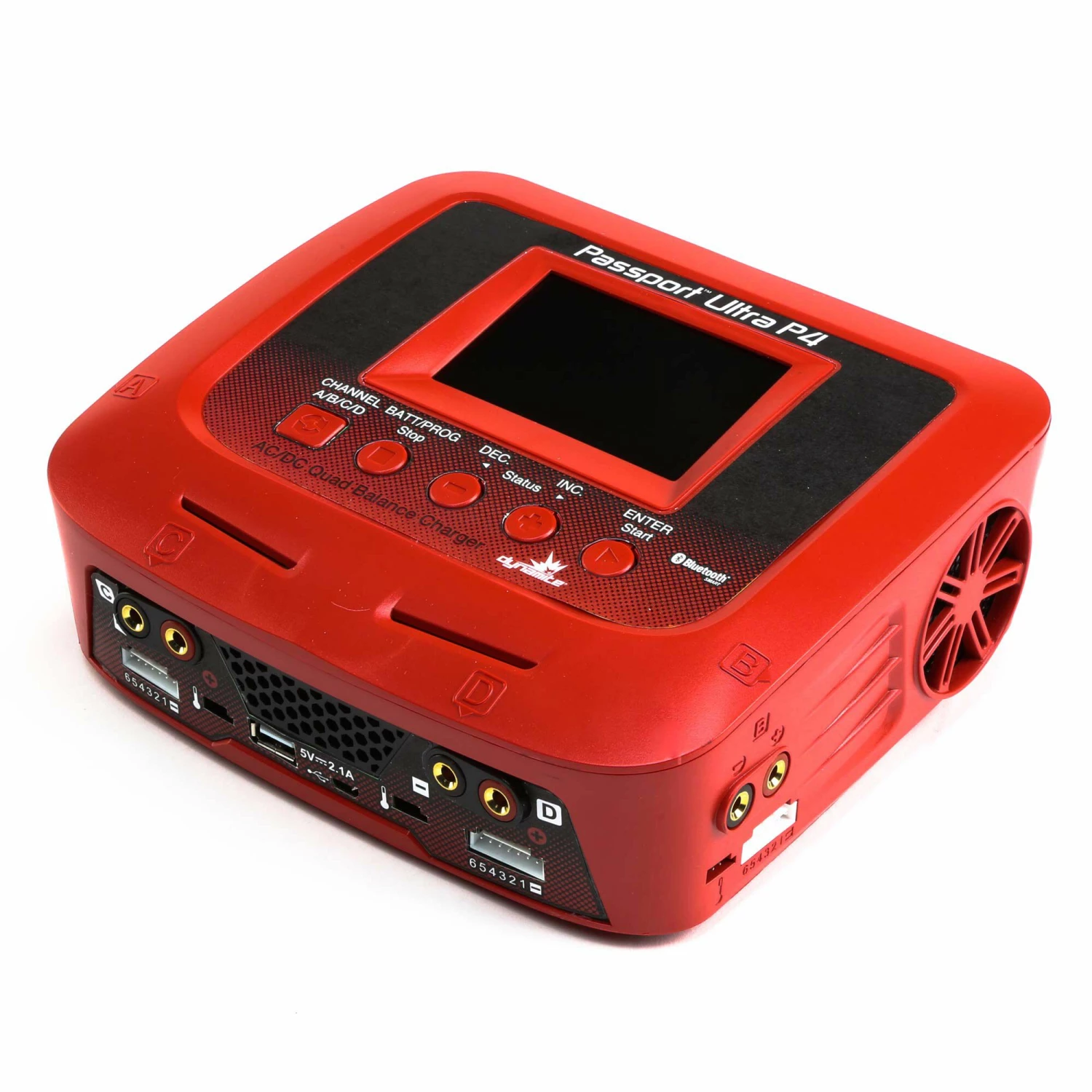

- (1) Passport™ P4 AC/DC Four Port Multicharger
- (4) Charge Adapter: Banana to EC3™ Device
- (4) Balancing Adapter Board: XH
- (2) Bare charge leads
- (1) AC Power Cord
- (1) Product Manual
Needed to Complete
- (1) LiPo charging bag or protective container
Need Help
- Product Support Information – Start Here
- Product & Sales – Contact Us
Product Specifications
- Amp Meter: Yes
- Application: RC model multi-charger
- Battery Balance Connector: XH
- Battery Temperature Monitoring: Yes
- Charge Protection Circuitry: Yes

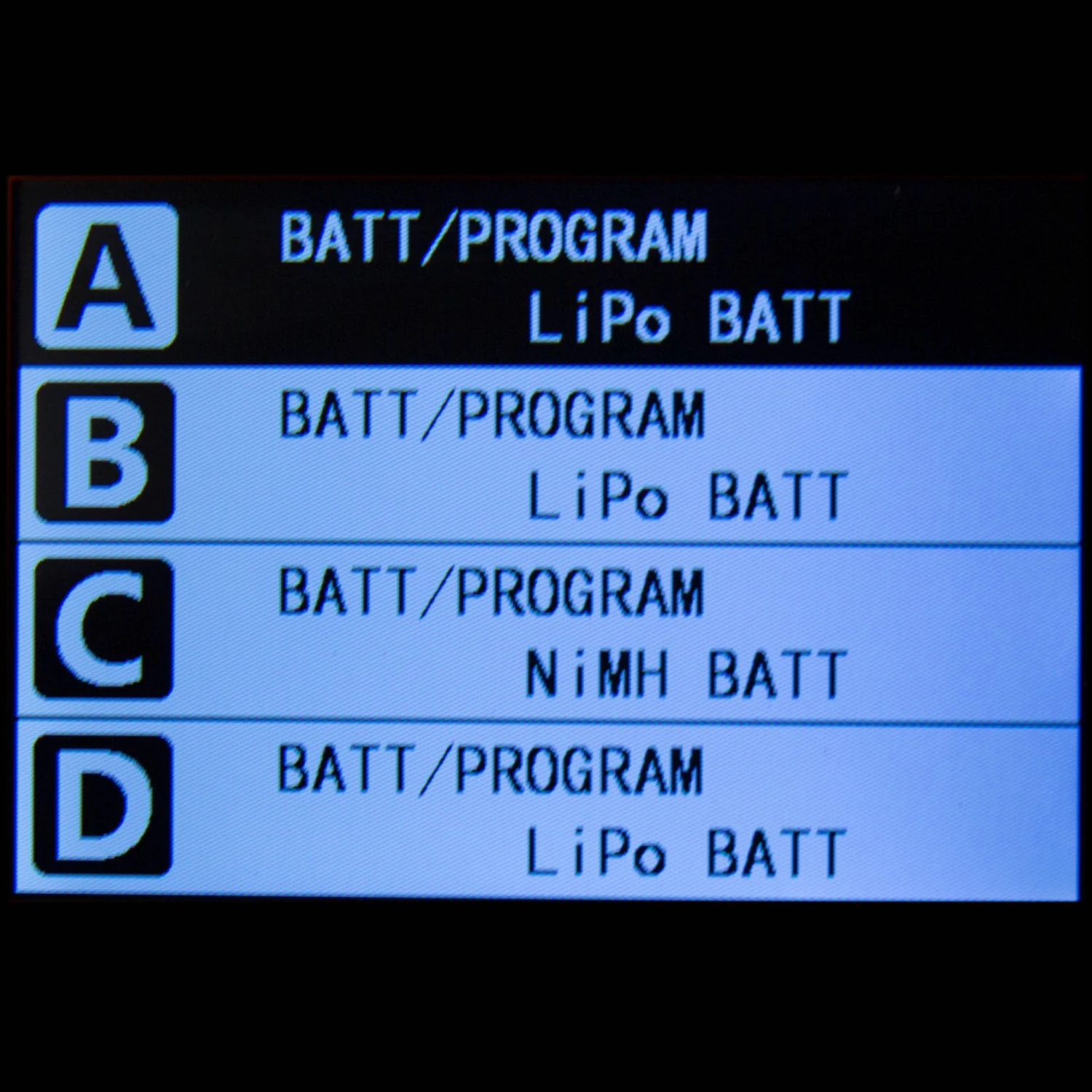

- Display: LCD
- Hard Case: Yes
- Input Voltage: 100 – 240V AC (50 – 60Hz); 11 – 18V DC
- Integrated Balancing: Yes – Internal Balancer & External Adapter
- Low Input Voltage Protection: Yes
- Maximum Charge Rate: 0.1 – 10A
- Maximum Continuous Discharge Current: 0.1 – 2A per channel
- Maximum Continuous Discharge Rate: 10W per channel
- Normal/Standard Charge Current: CH A&B 0.1 – 10A, CH C&D 0.1-5A
- Number of Cells: 1–6S Li-Po/Li-HV/Li-Ion/Li-Fe, 1–15C Ni-Cd/Ni-MH, 2–12V Pb
- Output: CH A&B 50-100W, CH C&D 0-50W
- Over Current Protection: Yes
- Peak Detection: Yes
- Programmable: Yes
- Reverse Polarity Protection: Yes
- Safety Timer: Yes
- Selectable Charge Rate: Yes
- Short Circuit Protection: Yes
- Software Updates: Yes
- Thermal Protection: Yes
- Voltage Meter: Yes
