Product Details

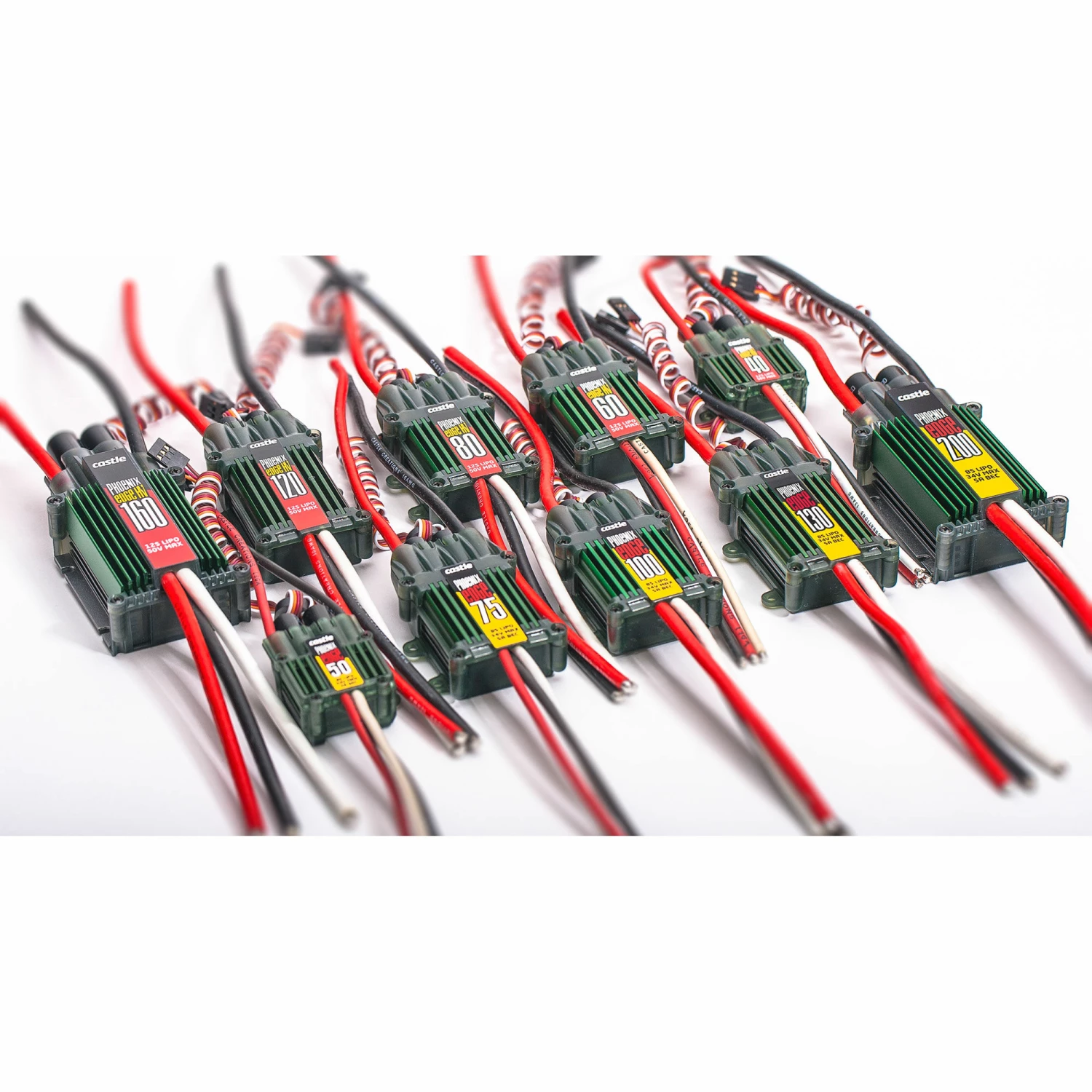

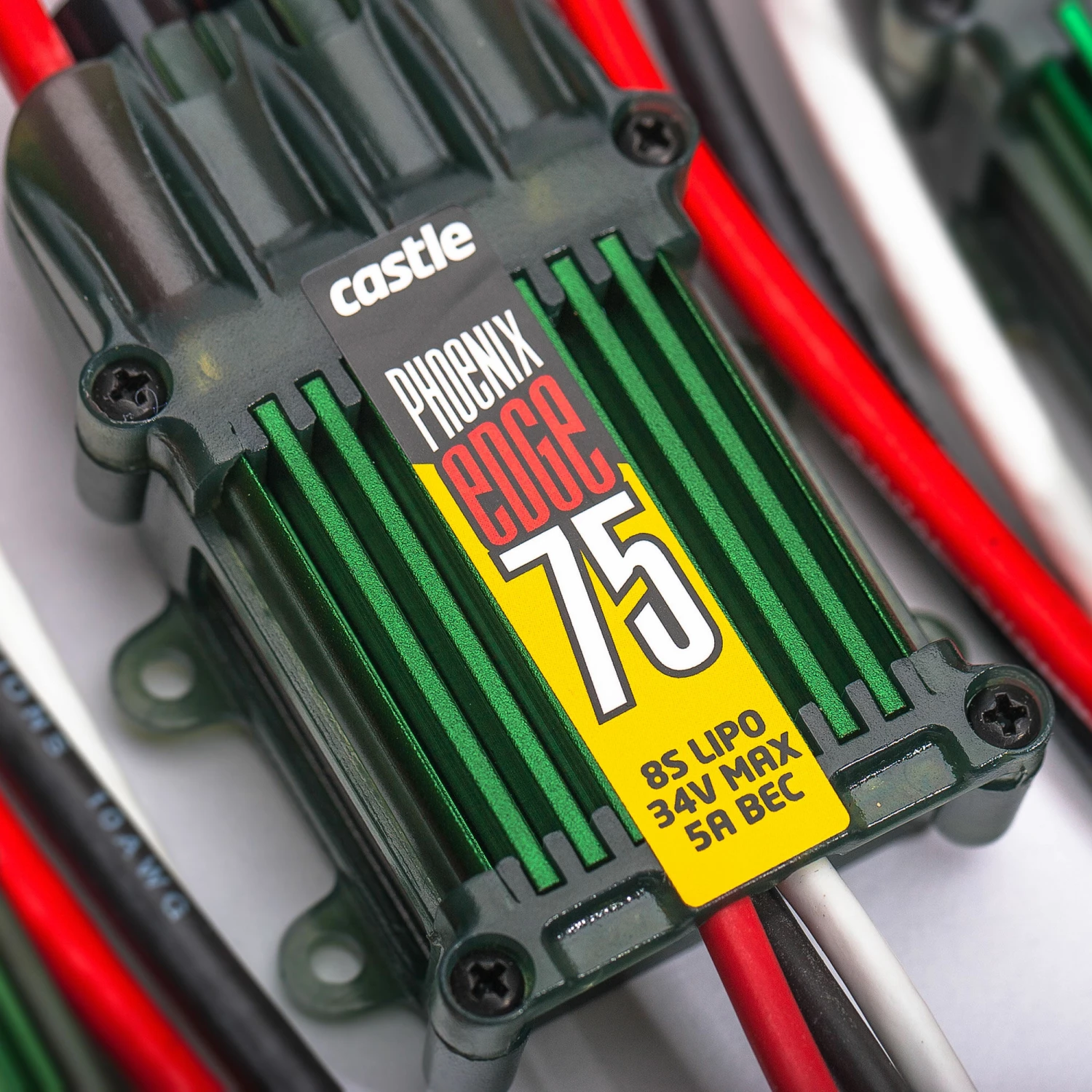

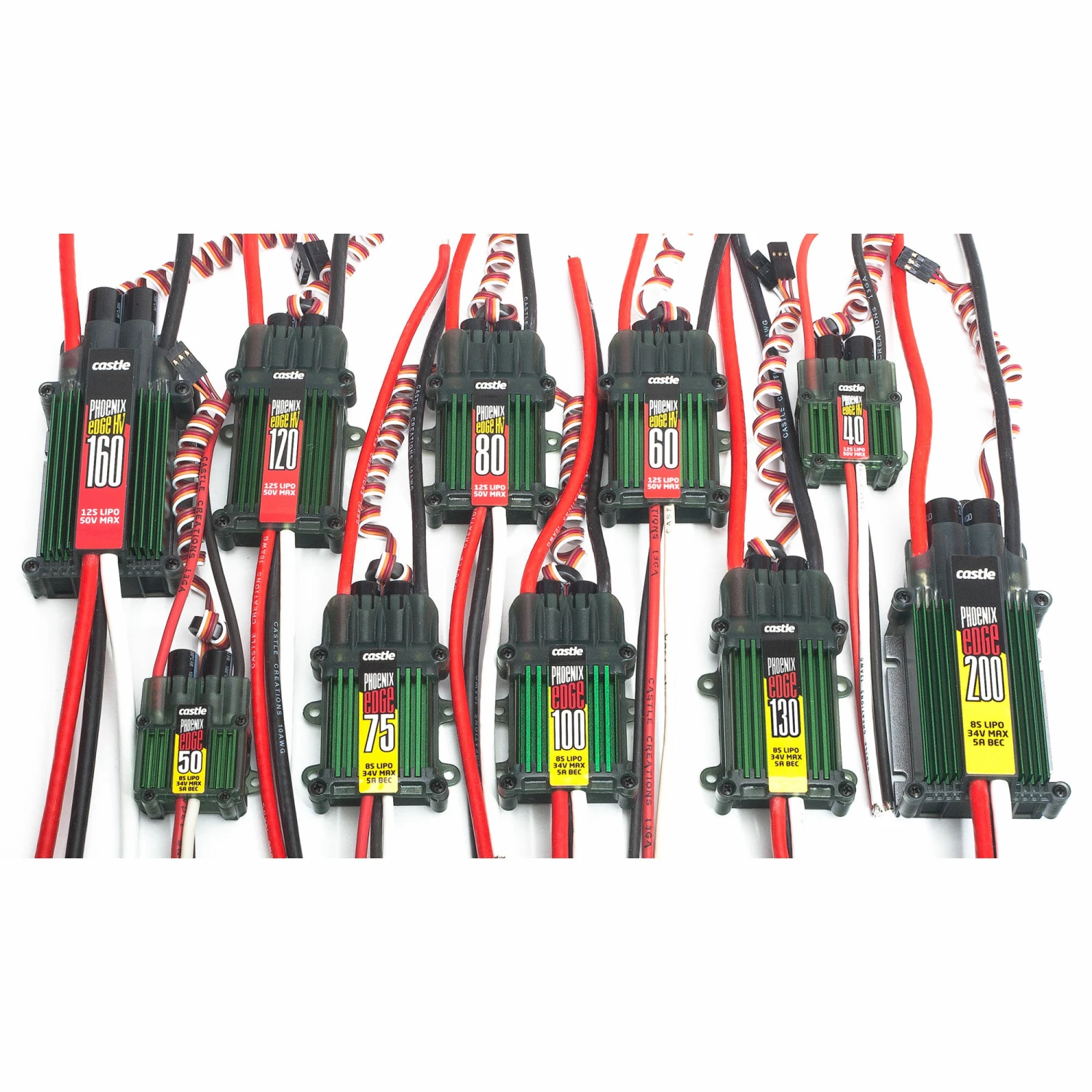

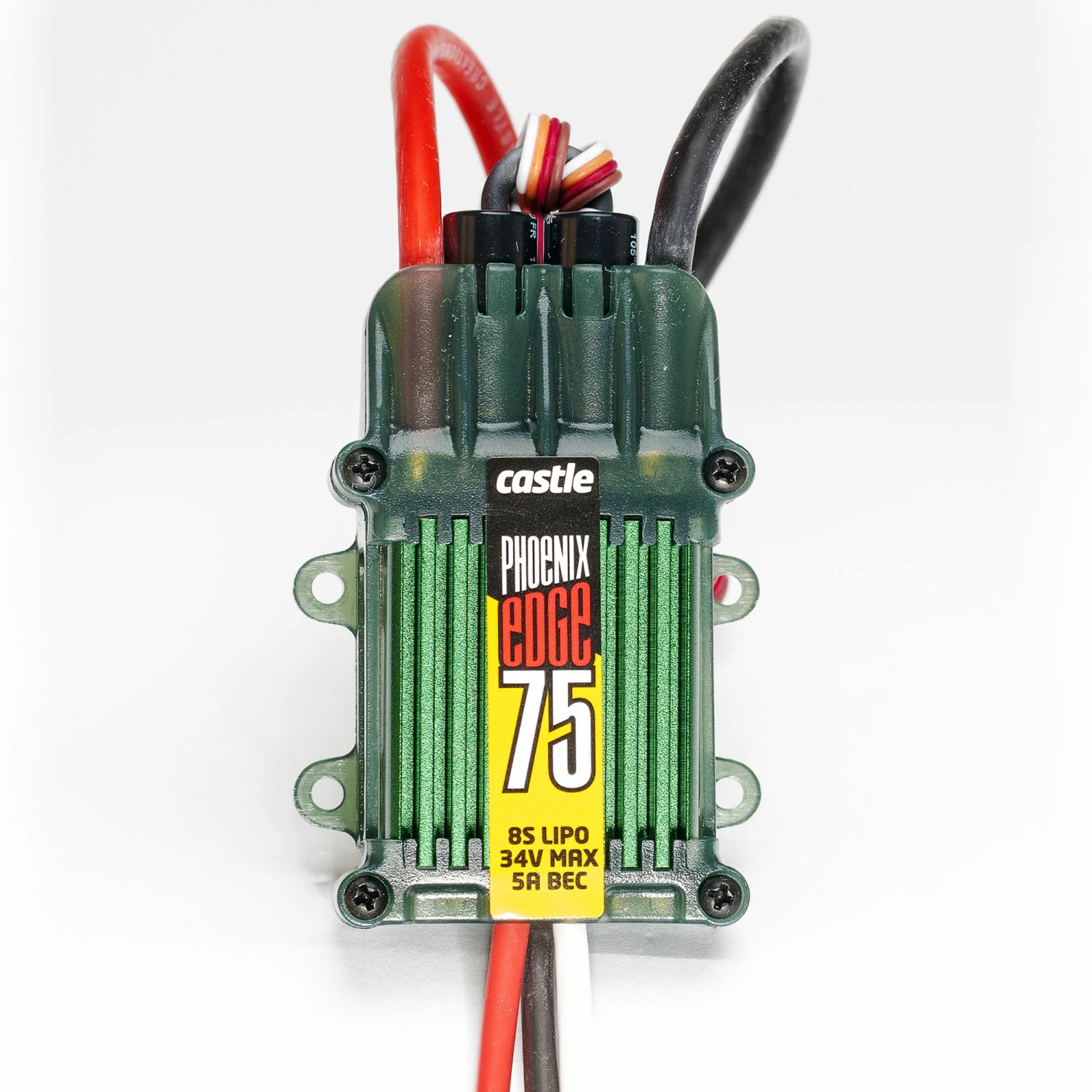

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included), , or the new B-LINK Bluetooth Adapter and Castle Link for iOS, Phoenix Edge offers unparalleled versatility.

Product Specifications

• Input Voltage: 2S-8S LiPo
• Part Type: Electronics
• Product Height: 0.9 in (23.2mm)
• Product Length: 2.8 in (71.9mm)
• Product Weight: 4.0 oz (113.4 g) with wires
• Product Width: 2.0 in (50.8mm)
• Programmable: Yes
• BEC Continous Current: 5 amp peak
• BEC Voltage: 5.0-8.4V, user selectable
• Connector Type: Open Ends
